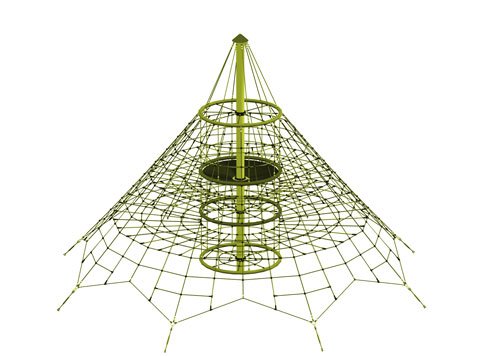

Dino 1 taunettpyramide



Dino 1 taunettpyramide

Lekeapparatet består av:

  • 1 steel post (Ø 193 mm), hot-dip galvanised, length 7.00 m, with aluminium cap (powdercoatedin red)
  • 1 original HUCK bird’s nest (Ø 1.90 m)
  • 3 steel rings wound round with rope (Ø 1.90 m), galvanised, with net base1 net surface
  • 2 horizontal nets
  • 8 turnbuckles M16, galvanised
  • Ropes and nets made of Hercules rope (Ø 16 mm, 6-strand, with steel core)



* Please note!

The version with buried ground anchors requires a foundation diameter of Ø 14.00 m.

Technical Details

Dino 1 rope net pyramid 8     Dino 1 rope net pyramid 9

Equipment height: 6.50 m
Space requirement: Ø 9.50 m
Safety zone: Ø 12.20 m*
Min. fall protection: 117.00 m²
Height of fall: 1.75 m

ca. 3 uker
Kr. 270 152,00ekskl. mva
337690,00 inkl. mva
Jordankersystem til Dino 1 taunettpyramide

Jordankersystem til Dino 1 taunettpyramide

Består av:

  • 1 steel centre mast anchor, hot-dip galvanised
  • 8 steel anchor plates, hot-dip galvanised (70 x 70 cm)
ca. 3 uker
Kr. 37 488,00ekskl. mva
46860,00 inkl. mva
Jordankersystem til Dino 2 taunettpyramide

Jordankersystem til Dino 2 taunettpyramide

Består av:

  • 1 steel centre mast anchor, hot-dip galvanised
  • 8 steel anchor plates, hot-dip galvanised (70 x 70 cm)
ca. 3 uker
Kr. 29 100,00ekskl. mva
36375,00 inkl. mva

Jordankersystem til Dino 3 taunettpyramide

Jordankersystem til Dino 3 taunettpyramide

Består av:

  • 8 steel anchor plates, hot-dip galvanised (70 x 70 cm)
ca. 3 uker
Kr. 7 756,00ekskl. mva
9695,00 inkl. mva

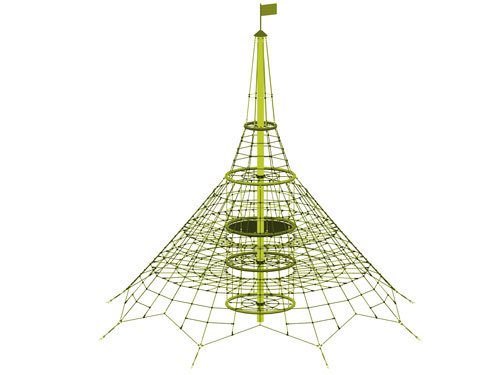

Dino XXL taunettpyramide



Dino XXL taunettpyramide

Lekeapparatet består av:

  • 1 post (Ø 193 mm), hot-dip galvanised, length 9.30 m, with aluminium cap (powder-coated in red)
  • 1 ring wound round with rope (Ø 0.90), galvanised, with net base
  • 3 rings wound round with rope (Ø 1.90), hot-dip galvanised, with net base
  • 1 original HUCK Bird’s Nest® (Ø 1.90)
  • 1 net surface
  • 2 horizontal nets (at heights of 1.40 m and 2.50 m)
  • 8 turnbuckles M16, galvanised
  • Ropes and nets made of Hercules rope (Ø 16 mm, 6-strand, with steel core)

Technical Details

Dino XXL rope net pyramids 6    Dino XXL rope net pyramids 7

Equipment height: 8.15 m
Space requirement: Ø 9.50 m
Safety zone: Ø 12.20 m
Min. fall protection: 117.00 m²
Height of fall: 1.75 m

ca. 3 uker
Kr. 202 220,00ekskl. mva
252775,00 inkl. mva
Klatrenett "Telt"


Klatreapparat består av:

  • 2 stålstolper(Ø 102 mm), varmgalvanisert, lengde 3.40 m, spesial-lakk(rød) standard
  • 1 telt-nett med strammewire
  • 2 hjul-husker
  • laget av Hercules tau(Ø 16 mm, 6-tråder, med stålkjern)


Tekniske detaljer


Høyde:

2.60 m

Arealbehov:

8.60 x 5.60 m

Sikkerhetssone:

10.05 x 7.05 m

Min. fall underlag:

54 m²

Fallhøyde:

2.00 m






ca. 3 uker
Kr. 86 920,00ekskl. mva
108650,00 inkl. mva

Superklatrer Maxi




Superklatrer Maxi

Lekeapparatet består av:

  • 1 steel post (Ø 102 m), hot-dip galvanised, length 6.00 m, with aluminium cap (powdercoatedin red)
  • 1 net surface
  • 2 horizontal nets
  • 8 turnbuckles M16, galvanised
  • Ropes and nets made of Hercules rope (Ø 16 mm, 6-strand, with steel core)

Technical Details

Super-climb maxi 2

Støpemasse nødvendig: 2.60 m³ (medfølger ikke)

Equipment height: 5.00 m
Space requirement: 6.20 x 6.20 m
Safety zone: 9.25 x 9.25 m
Min. fall protection: 80.00 m²
Height of fall: 2.00 m

ca. 3 uker
Kr. 96 000,00ekskl. mva
120000,00 inkl. mva
Superklatrer Midi



Superklatrer Midi

Lekeapparatet består av:

  • 1 steel post (Ø 100 mm), hot-dip galvanised, length 4.30 m, with aluminium cap (powdercoatedin red)
  • 1 net surface
  • 8 turnbuckles M16, galvanised
  • Ropes and nets made of Hercules rope (Ø 16 mm, 6-strand, with steel core)

Technical Details

Equipment height: 3.50 m
Space requirement: 6.20 x 6.20 m
Safety zone: 9.25 x 9.25 m
Min. fall protection: 77.50 m²
Height of fall: 2.50 m

ca. 3 uker
Kr. 33 510,00ekskl. mva
41887,50 inkl. mva
Cheops klatrepyramide Mini

Cheops klatrepyramide Mini

Lekeapparatet består av:

  • 1 stål stolpe (Ø 102 mm), varmgalvanisert, lengde 4.00 m, med aluminium lokk (pulverlakkert i rødt)
  • 1 taustige med plastikk-koblinger
  • 1 klatretau
  • 1 horizontal net
  • 1 nett
  • 16 galvaniserte kroker M16
  • Tau og nett av Hercules tau(Ø 16 mm, 6-tråder,med stålkjerne)

Inkludert jordankersystem:

17 ankerplater i stål, varmgalvanisert 50X50 cm

Technical Details

Cheops pyramid, mini 4    Cheops pyramid, mini 5

Equipment height: 3.60 m
Space requirement: Ø 4.00 m
Safety zone: Ø 6.40 m
Min. fall protection: 32.00 m²
Height of fall: 1.20 m

ca. 3 uker
Kr. 59 988,00ekskl. mva
74985,00 inkl. mva

Jordankersystem til klatrepyramide Mini

Jordankersystem til klatrepyramide Mini

Består av:

  • 17 steel anchor plates, hot-dip galvanised (50 x 50 cm)
ca. 3 uker
Kr. 14 228,00ekskl. mva
17785,00 inkl. mva
Cheops klatrepyramide Midi

Cheops klatrepyramide Midi


Lekeapparatet består av:

  • 1 steel post (Ø 160 mm), hot-dip galvanised, length 5.00 m, with aluminium cap (powdercoated in red)
  • 4 swing ladders with plastic rungs
  • 4 climbing ropes
  • 2 horizontal nets (at heights of 1.40 m and 3.10 m)
  • 1 net surface
  • 16 turnbuckles M16, galvanised
  • Ropes and nets made of Hercules rope (Ø 16 mm, 6-strand, with steel core)

Technical Details

Cheops pyramid midi 6    Cheops pyramid midi 7
Equipment height: 4.30 m
Space requirement: Ø 8.00 m
Safety zone: Ø 9.60 m
Min. fall protection: 72.00 m²
Height of fall: 1.50 m
ca. 3 uker
Kr. 92 088,00ekskl. mva
115110,00 inkl. mva
Cheops klatrepyramide-kombinasjon Midi

Cheops klatrepyramide-kombinasjon Midi


Lekeapparatet består av:

  • 2 steel posts (Ø 160 mm), hot-dip galvanised, length 5.00 m, with aluminium cap (powdercoatedin red)
  • 2 net surfaces
  • 1 crossing bridge
  • 8 swing ladders with plastic rungs
  • 8 climbing ropes
  • 4 horizontal nets(at heights of 1.40 m and 3.10 m)
  • 32 turnbuckles M16, galvanised
  • Ropes and nets made of Hercules rope (Ø 16 mm, 6-strand, with steel core)

Technical Details

Cheops combination, midi 10    Cheops combination, midi 11

Equipment height: 4.30 m
Space requirement: 18.90 x 8.00 m
Safety zone: 20.60 x 9.60 m
Min. fall protection: 152.00 m2
Height of fall: 1.70 m

ca. 3 uker
Kr. 193 160,00ekskl. mva
241450,00 inkl. mva

Cheops klatrepyramide Maxi

Cheops klatrepyramide Maxi

Lekeapparatet består av:

  • 1 steel post (Ø 160 mm), hot-dip galvanised, length 6.30 m, with aluminium cap (powder-coated in red)
  • 6 climbing ladders with plastic rungs
  • 2 climbing chimneys
  • 2 horizontal nets (at heights of 1.70 m and 3.40 m)
  • 1 net surface
  • 16 turnbuckles M16, galvanised
  • Ropes and nets made of Hercules rope (Ø 16 mm, 6-strand, with steel core)

Technical Details

Cheops pyramid, maxi 3     Cheops pyramid, maxi 4

Equipment height: 5.60 m
Space requirement: Ø 11.00 m
Safety zone: Ø 13.00 m
Min. fall protection: 132.50 m2
Height of fall: 1.75 m

ca. 3 uker
Kr. 151 464,00ekskl. mva
189330,00 inkl. mva
